ULTIMA SERIES

cdU | CIRCULATION DESK

The Ultima Series circulation desk is designed to provide modularity to further your investment dollars, while providing the look and functionality of a continuous top circulation desk. The units are bolted together to ensure stability, but can be unbolted and rearranged at will, and then rebolted in the new pattern. Each end of the circulation desk is terminated with a finished end panel.

+ FINISH OPTIONS

RCM Stains on Oak

RCM Stains on Maple

Laminates to match RCM Stains

FINISH OPTIONS
DEALER RESOURCES

UNIT OPTIONS

pATRON DESK

Recessed work surface, fastened with metal cleats. Grommets are centered along the length. 6” Deep patron ledge. 29”H work surface.

CDU-3202 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3902 - ADULT HEIGHT
39”H x 36”W x 30”D

SINGLE DRAWER KNEE SPACE UNIT

Each unit comes standard with one full-width drawer.

CDU-3236 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3936 - ADULT HEIGHT
39”H x 36”W x 30”D

BOOK RETURN UNIT

The front panel will have a 3”H x 12”W book-return slot, fully edgebanded, with an internal wood chute so as to allow gentle deposit of books into book truck.

CDU-3205 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3905 - ADULT HEIGHT
39”H x 36”W x 30”D

dEPRESSIBLE BOOK TRUCK

Each unit will have a depressible platform that will hold apx. 70 books. Each unit has four 3” swivel casters mounted directly to bottom.

BT-D32 - ELEMENTARY HEIGHT
22”H x 26”W x 22”D

BT-D39 - ADULT HEIGHT
29”H x 26”W x 22”D

sINGLE dRAWER CUPBOARD UNIT

Storage drawer over cupboard storage space. The adult height unit is supplied with two adjustable shelves. The elementary height unit is supplied with one adjustable shelf.

CDU-3237 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3937 - ADULT HEIGHT
39”H x 36”W x 30”D

OPEN SHELF UNIT

Adult units will be supplied with two full-depth, adjustable shelves. Elementary height units will be supplied with one adjustable shelf.

CDU-3208 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3908 - ADULT HEIGHT
39”H x 36”W x 30”D

CUPBOARD UNIT

Hinged doors will have door pulls. Adult units will be supplied with two full-depth, adjustable shelves. Elementary height units will be supplied with one adjustable shelf.

CDU-3210 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3910 - ADULT HEIGHT
39”H x 36”W x 30”D

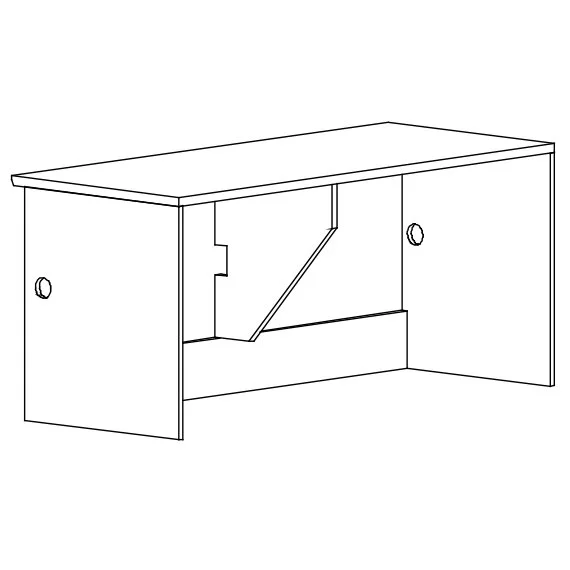

dOUBLE wIDTH DESK

Work surface grommet placed along patron length on each end. The work surface will be supported at midspan with a 1” thick stiff-knee.

CDU-3253 - ELEMENTARY HEIGHT
32”H x 72”W x 30”D

CDU-3953 - ADULT HEIGHT
39”H x 72”W x 30”D

Double-Width patron desk

Work surface is 29”H. This unit is supplied with 2 work surface grommets. Stiff-knee rests atop the toe board. Patron ledge is 6”D.

CDU-3203 - ELEMENTARY HEIGHT
32”H x 72”W x 30”D

CDU-3903 - ADULT HEIGHT
39”H x 72”W x 30”D

90 DEGREE flat-front CLOSEd CORNER UNIT

Triangular with flat, closed-face design. Will be used to form a 90-degree transition in any desk arrangement. Supplied with internal wire management.

CDU-3252 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D

CDU-3952 - ADULT HEIGHT
39”H x 33”W x 33”D

desk unit

Two work surface grommets placed along front edge unless otherwise specified. Sturdy work surface with knee space underneath.

CDU-3234 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3934 - ADULT HEIGHT
39”H x 36”W x 30”D

90 DEGREE CURVED DESK UNIT

Creates a 90-degree transition in any desk arrangement, while providing a corner work space with a flat work surface.

CDU-3251 - ELEMENTARY HEIGHT
32”H x 78.5”W x 30”D

CDU-3951 - ADULT HEIGHT
39”H x 78.5”W x 30”D

sINGLE dRAWER STACK UNIT

The adult height units will receive four drawers and the elementary units will receive three drawers.

CDU-3222 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3922 - ADULT HEIGHT
39”H x 36”W x 30”D

DOUBLE DRAWER KNEE SPACE UNIT

Each unit is supplied with two equal-width drawers.

CDU-3209 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3909 - ADULT HEIGHT
39”H x 36”W x 30”D

90 DEGREE CURVED PATRON DESK UNIT

Creates a 90-degree transition in any desk arrangement, while providing a corner work space with a recessed work surface and patron ledge. Patron ledge is 6”D.

CDU-3250 - ELEMENTARY HEIGHT
32”H x 78.5”W x 30”D

CDU-3950 - ADULT HEIGHT
39”H x 78.5”W x 30”D

DOUBLE DRAWER CUPBOARD UNIT

Unit is supplied with two equal-width drawers. The adult height will have two adjustable shelves. The elementary height will have one adjustable shelf.

CDU-3238 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3938 - ADULT HEIGHT
39”H x 36”W x 30”D

finished end panel

Each panel will be constructed using banded, matching veneer-core plywood.

NOTE: all fully assembled circulation desks will need two finished end panels unless placement is permanently next to a wall or other structure that hides the unfinished side of the service unit on the end.

CDU-3218 - ELEMENTARY HEIGHT
31.75”H x 1”W x 30.5”D

CDU-3918 - ADULT HEIGHT
38.75”H x 1”W x 30.5”D

RIGHT cUPBOARD fILE dRAWER uNIT

Cupboard on right side, drawers on left side. Each adult height unit will have two file drawers, one box drawer and two adjustable shelves in the cupboard. The elementary height will have one box drawer, one file drawer, and one adjustable shelf in the cupboard.

CDU-3239 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3939 - ADULT HEIGHT
39”H x 36”W x 30”D

CORNER PATRON DESK UNIT

Creates a 90-degree transition in any desk arrangement, while providing a corner work space with a recessed work surface and patron ledge. Patron ledge is 6”D.

CDU-3232 - ELEMENTARY HEIGHT
32”H x 78.5”W x 30”D

CDU-3932 - ADULT HEIGHT
39”H x 78.5”W x 30”D

CORNER DESK UNIT

Creates a 90-degree transition in any desk arrangement, while providing a corner work space.

CDU-3233 - ELEMENTARY HEIGHT

32”H x 78.5”W x 30”D

CDU-3933 - ADULT HEIGHT
39”H x 78.5”W x 30”D

Desk with pencil drawer

The pencil drawer is centered under the work surface with knee space beneath.

CDU-3247 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3947 - ADULT HEIGHT
39”H x 36”W x 30”D

LEFT cUPBOARD fILE dRAWER uNIT

Cupboard on left side, drawers on right side. Each adult height unit will have two file drawers, one box drawer and two adjustable shelves in the cupboard. The elementary height will have one box drawer, one file drawer, and one adjustable shelf in the cupboard.

CDU-3240 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3940 - ADULT HEIGHT
39”H x 36”W x 30”D

DOUBLE DRAWER STACK UNIT

This unit consists of a double stack of drawers. The adult height unit has four file drawers. The elementary height unit has two box drawers and two file drawers.

CDU-3229 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3929 - ADULT HEIGHT
39”H x 36”W x 30”D

TWO-DRAWER FILE OPEN TOP SHELF UNIT

Each unit is an open shelf unit with two letter file drawers. Adult height units are supplied with one full-depth, adjustable shelf. Elementary height units will not have an adjustable shelf.

CDU-3214 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3914 - ADULT HEIGHT
39”H x 36”W x 30”D

LEFT CUPBOARD OPEN SHELF UNIT

Cupboard on left side, open shelves on right side. Each adult unit will be supplied with two adjustable shelves in the cupboard, an open shelf space, and drawer above the cupboard. The elementary height will be supplied with one adjustable shelf in the cupboard and open shelf space.

CDU-3243 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3943 - ADULT HEIGHT
39”H x 36”W x 30”D

RIGHT CUPBOARD OPEN SHELF UNIT

Cupboard on right side, open shelves on left side. Each adult unit will be supplied with two adjustable shelves in the cupboard, an open shelf space, and drawer above the cupboard. The elementary height will be supplied with one adjustable shelf in the cupboard and open shelf space.

CDU-3242 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3942 - ADULT HEIGHT
39”H x 36”W x 30”D

DOUBLE DRAWER, LEFT CUPBOARD AND FILE UNIT

Cupboard on left, file drawer on right. Each adult height unit will have two box drawers, two file drawers, and two adjustable shelves inside the cupboard. Elementary height units have one box drawer, one file drawer, and one adjustable shelf.

CDU-3254 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3954 - ADULT HEIGHT
39”H x 36”W x 30”D

DOUBLE DRAWER, RIGHT CUPBOARD AND FILE UNIT

Cupboard on right, file drawer on left. Each adult height unit will have two box drawers, two file drawers, and two adjustable shelves inside the cupboard. Elementary height units have two box drawers, one file drawer, and one adjustable shelf.

CDU-3241 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3941 - ADULT HEIGHT
39”H x 36”W x 30”D

LEFT FILE DRAWER OPEN SHELF UNIT

Left side file drawers, right side open shelf. Adult height unit will have one box drawer, two file drawers and two adjustable shelves. Elementary height units will have one box drawer, one file drawer and one adjustable shelf.

CDU-3244 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3944 - ADULT HEIGHT
39”H x 36”W x 30”D

RIGHT FILE DRAWER OPEN SHELF UNIT

Right side file drawers, left side open shelf. Adult height unit will have one box drawer, two file drawers and two adjustable shelves. Elementary height units will have one box drawer, one file drawer and one adjustable shelf.

CDU-3245 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3945 - ADULT HEIGHT
39”H x 36”W x 30”D

pATRON DESK UNIT w/ pencil drawer

Unit will have a recessed work surface fastened with metal cleats. The patron ledge is 6”D. The pencil drawer is centered under the work surface.

CDU-3235 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3935 - ADULT HEIGHT
39”H x 36”W x 30”D

DOUBLE DRAWER OPEN SHELF UNIT

Each unit is supplied with two equal-width drawers over open shelving. Adult height units will be supplied with two full-depth adjustable shelves. Elementary height units will be supplied with one shelf.

CDU-3207 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3907 - ADULT HEIGHT
39”H x 36”W x 30”D

90 DEGREE FLAT-FRONT OPEN SHELF CORNER UNIT

Each unit will be triangular with a flat open-front design and will be used to form a 90-degree transition in any desk arrangement. Adult units will have two adjustable shelves. Elementary units will have one adjustable shelf. Open shelf corner units do not provide for wire access.

CDU-3223 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D

CDU-3923 - ADULT HEIGHT
39”H x 33”W x 33”D

90 DEGREE open shelf corner unit

Each unit will be triangular, with an angled, open-face design and will be used to form a 90-degree transition in any desk arrangement. Adult height units will be supplied with two adjustable shelves and elementary height units will be supplied with one adjustable shelf. Open shelf corner units do not provide for wire access.

CDU-3217 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D

CDU-3917 - ADULT HEIGHT
39”H x 33”W x 33”D

90 DEGREE RADIUSED OPEN SHELF CORNER UNIT

Each unit will be triangular, with a radiused, open-face design and will be used to form a 90-degree transition in any desk arrangement. Adult height units will be supplied with two adjustable shelves and elementary height units will be supplied with one adjustable shelf. Open shelf corner units do not provide for wire access.

CDU-3228 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D

CDU-3928 - ADULT HEIGHT
39”H x 33”W x 33”D

90 DEGREE closed corner unit

Each unit will be triangular with an angled, closed-face design and will be used to form a 90-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.

CDU-3216 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D

CDU-3916 - ADULT HEIGHT
39”H x 33”W x 33”D

square closed corner unit

Each unit will be square, with a closed-face design and will be used to form a 90-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.

CDU-3224 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D

CDU-3924 - ADULT HEIGHT
39”H x 33”W x 33”D

45 degree closed corner unit

Each unit will be triangular with angled, closed-face design and will be used to form a 45-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.

CDU-3225 - ELEMENTARY HEIGHT
32”H x 24.75”W x 30”D

CDU-3925 - ADULT HEIGHT
39”H x 24.75”W x 30”D

45 degree radiused closed corner unit

Each unit will be triangular with a radiused, closed-face design and will be used to form a 45-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.

CDU-3227 - ELEMENTARY HEIGHT
32”H x 24.75”W x 30”D

CDU-3927 - ADULT HEIGHT
39”H x 24.75”W x 30”D

SINGLE DRAWER OPEN SHELF UNIT

Unit is supplied with a full-width storage drawer over open shelving. Adult units are supplied with two full-depth, adjustable shelves. The elementary height unit is supplied with one full-depth, adjustable shelf.

CDU-3246 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D

CDU-3946 - ADULT HEIGHT
39”H x 36”W x 30”D

ADA Transaction unit

The unit will have a modesty panel mounted along the midline. The work surface is 32”H.

ADA NOTE: When an ADA unit is used on one end of an adult height circulation desk, an elementary finished end panel should be ordered for that end. When an ADA unit is placed between other adult units, the work surface is captured rather than continuous.

CDU-3220 - ELEMENTARY & ADULT HEIGHT
32”H x 36”W x 36”D
*ADA max 32”H

Double width ada transaction unit

Unit will have a modesty panel mounted along unit midline. The work surface is 32”H.

CDU-3221 - ELEMENTARY & ADULT HEIGHT
32”H x 72”W x 36”D
*ADA max 32”H

90 DEGREE RADIUSED CLOSED CORNER UNIT

Each unit will be triangular with radiused, closed-face design and will be used to form a 90-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.

CDU-3226 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D

CDU-3926 - ADULT HEIGHT
39”H x 33”W x 33”D

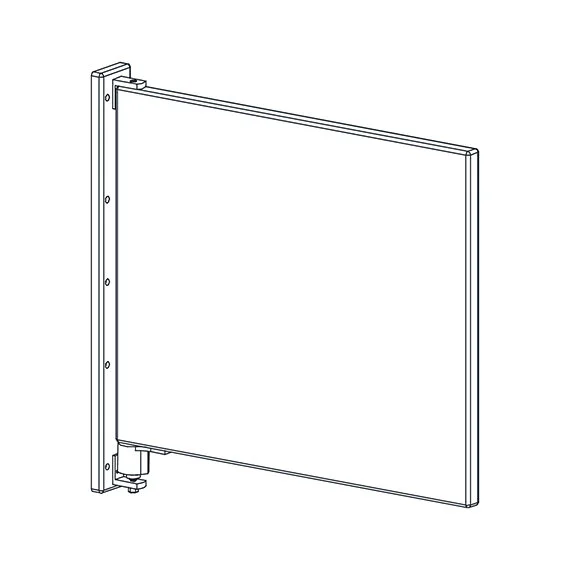

Swinging Gate

Gates can be mounted to walls or finished end panels on the circulation desk.

NOTE: The desired width of the gate and hinge type (single or double action) MUST BE quoted in advance and specified on the order.

CDU-1G 32 - ELEMENTARY HEIGHT, SINGLE ACTION HINGE
32”H x Specify”W

CDU-2G 32 - ELEMENTARY HEIGHT, DOUBLE ACTION HINGE
32”H x Specify”W

CDU-1G 39 - ELEMENTARY HEIGHT, SINGLE ACTION HINGE
39”H x Specify”W

CDU-2G 39 - ELEMENTARY HEIGHT, DOUBLE ACTION HINGE
39”H x Specify”W

accessories & mobile units

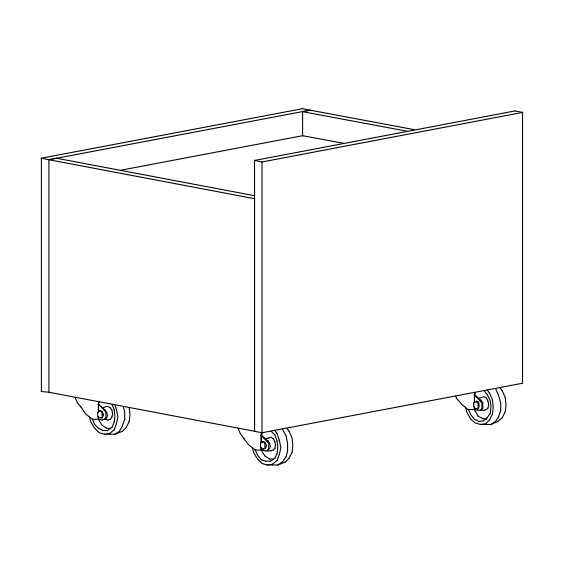

MOBILE FILE CABINET

The elementary height unit is supplied with 1 box and 1 file drawer. The intermediate height is supplied with 2 boxes and 1 file drawer. The adult height is supplied with 1 box and 2 file drawers.

A-23 - ELEMENTARY HEIGHT
25”H x 17”W x 19”D

A-23A - INTERMEDIATE HEIGHT
31”H x 17”W x 19”D

A-23B - ADULT HEIGHT
36”H x 17”W x 19”D

MObILE CUPBOARD UNIT

This unit is supplied with two shelves for the adult height and one shelf for the elementary height. The back is supplied with grommets for wire management.

A-27 - ELEMENTARY HEIGHT
26”H x 25”W x 20”D

A-28 - ADULT HEIGHT
36”H x 25”W x 20”D

KEYBOARD TRAY

The Pullout Keyboard Tray consists of metal ball-bearing glides fastened to a 3/4”T oak veneer plywood tray. Finished with edgeband on the front edge.

A-17 - STANDARD UNIT

Pencil drawer

The pencil drawer can be mounted under any desk or return arrangement where space permits. Drawer pull is satin chrome. Mounted with full extension ball bearing glides.

A-20 - STANDARD UNIT

MOBILE OPEN SHELF UNIT
